Microsoft 365 Connector Prerequisites: Register an App in Microsoft Entra ID

Modified on Tue, 5 May at 4:47 PM

This article explains the Microsoft Entra ID setup that must be completed before enabling the Microsoft 365 connector in Omniscope. You will register an application, create a client secret, and grant the required Microsoft Graph permissions so that the connector can be configured with the correct Tenant ID, Client ID, and Client Secret and be authorized to read mail, and if required, send mail.

1) Register an app

Go to Microsoft Entra admin center (Entra ID)
Applications → App registrations → New registration
Name: e.g. Omniscope Email Connector (App-Only)
Supported account types: typically Accounts in this organizational directory only

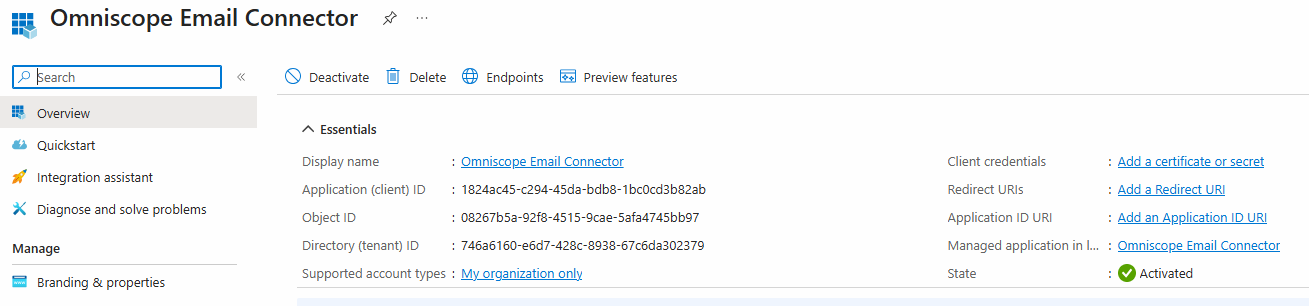

Click Register

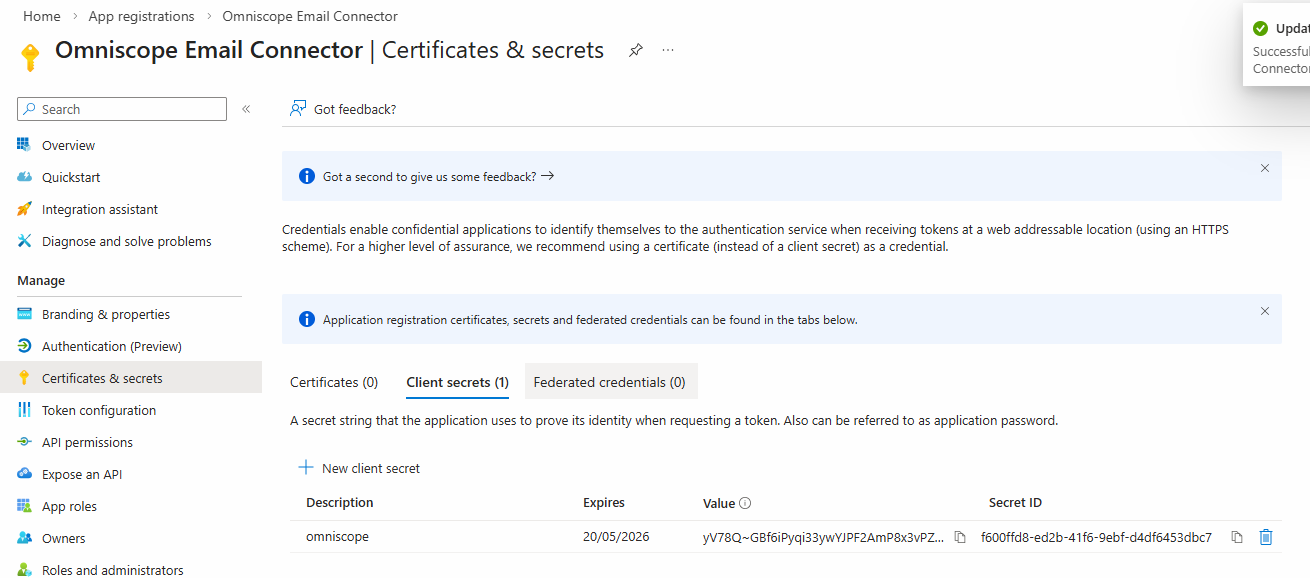

2) Create a client secret

In the app: Certificates & secrets

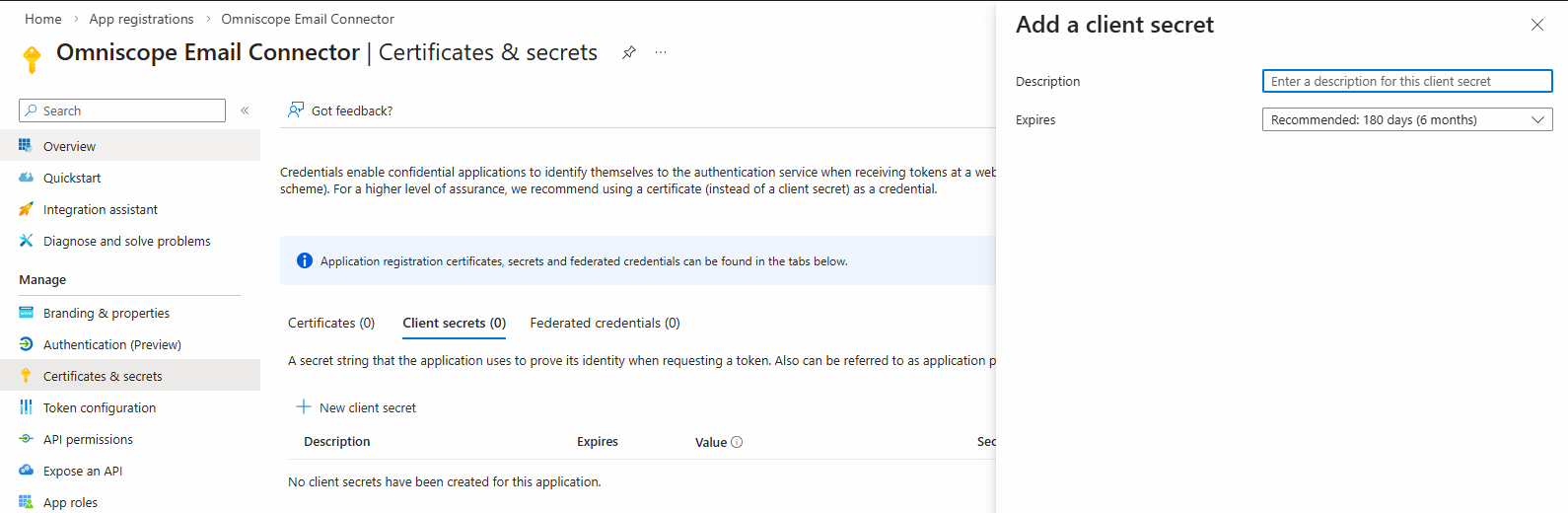

Client secrets → New client secret
Choose an expiry that aligns with your ops policy (longer = fewer outages)
Click Add
Copy the Value immediately

Important: you must copy the Value.
You cannot retrieve it later.
Do not confuse it with the “Secret ID”.

That Value is clientSecret.

3) Add Microsoft Graph permissions (application permissions)

App → API permissions → Add a permission

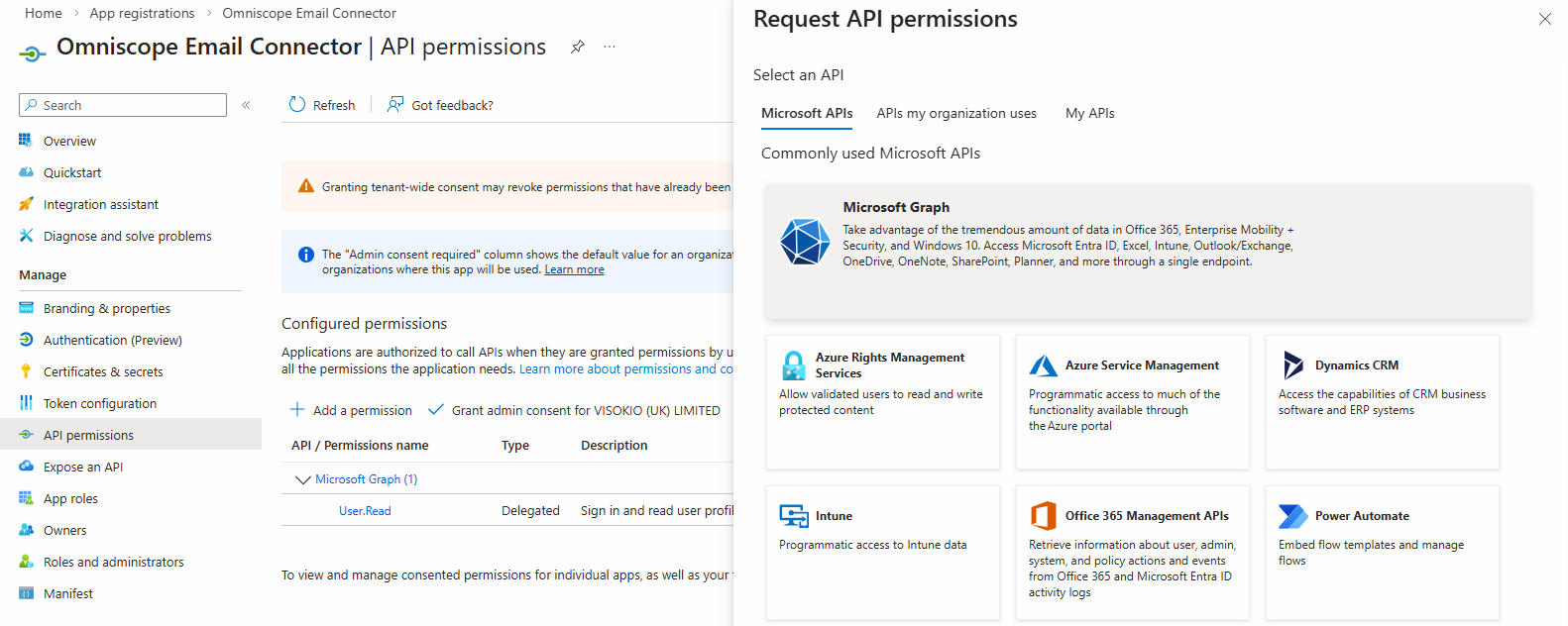

Choose Microsoft Graph

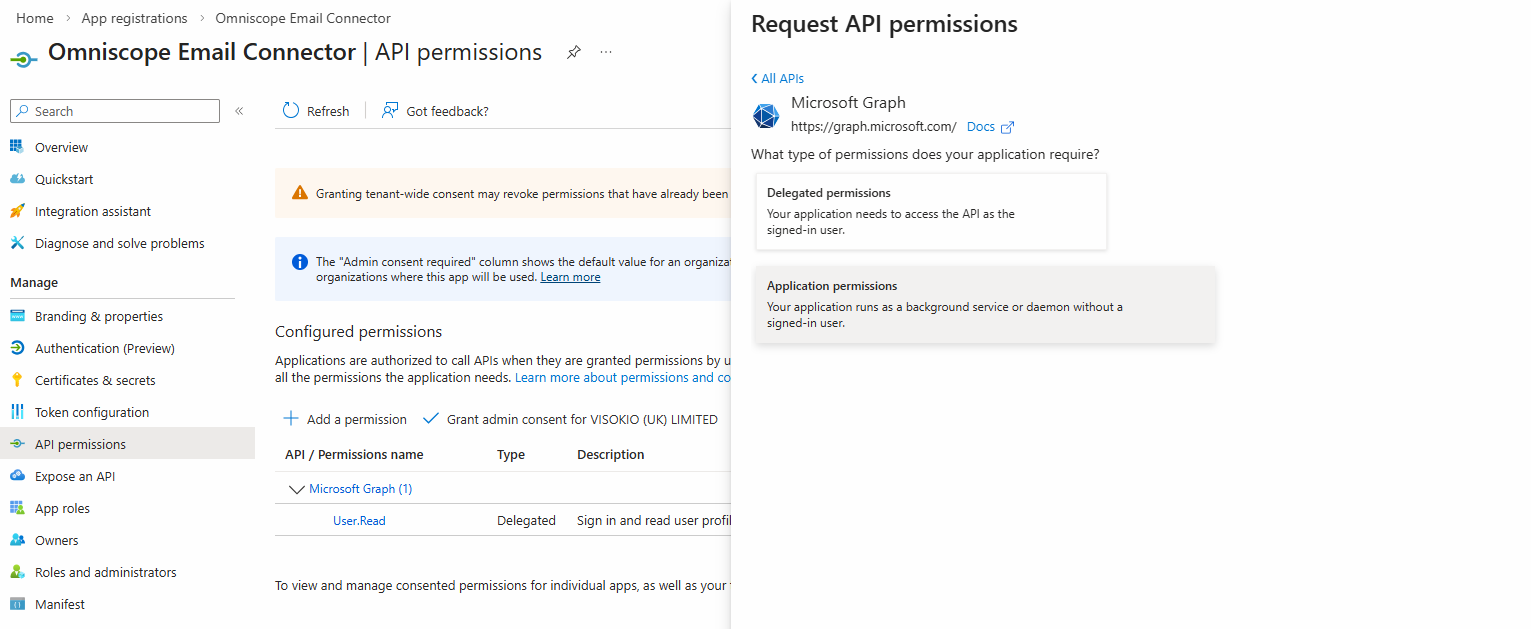

Choose Application permissions

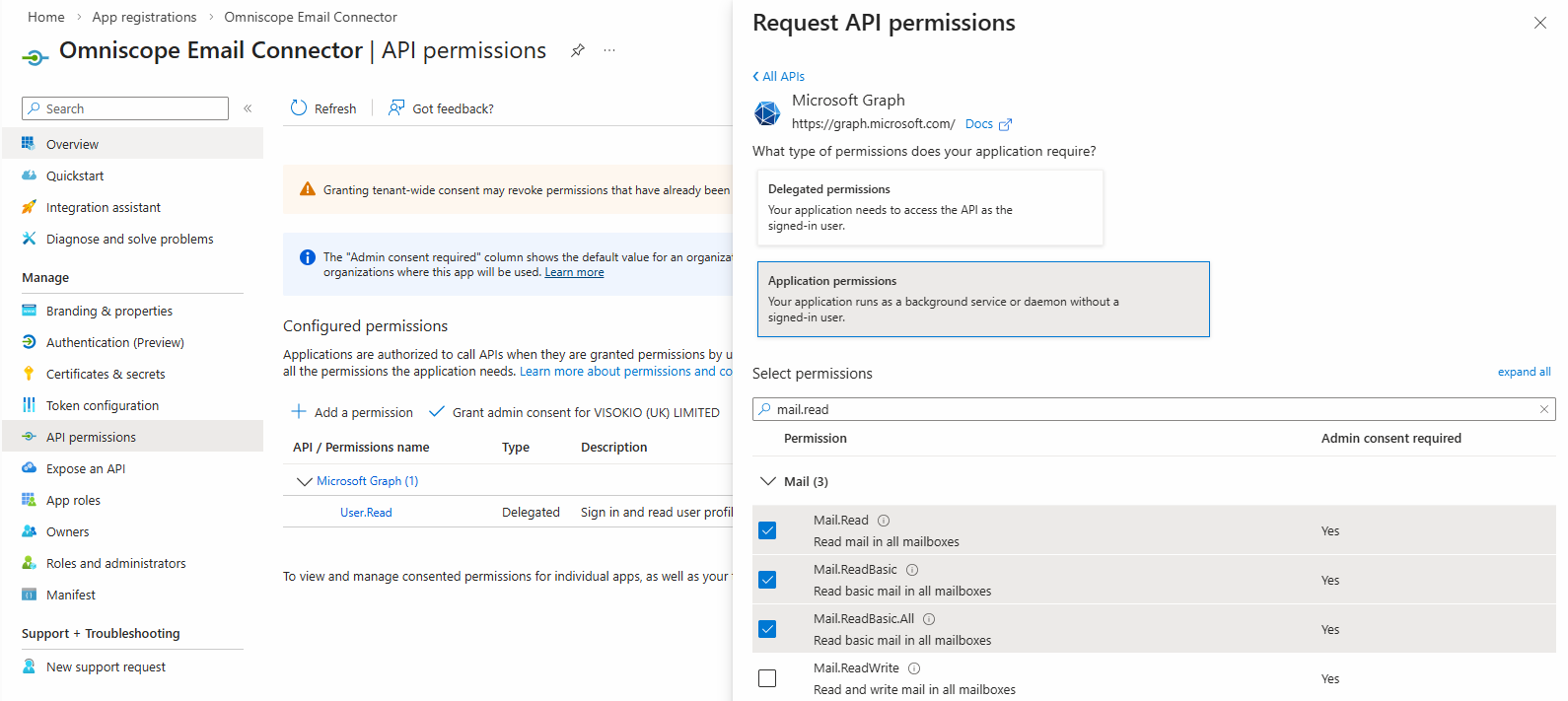

Add the required Microsoft Graph application permissions:

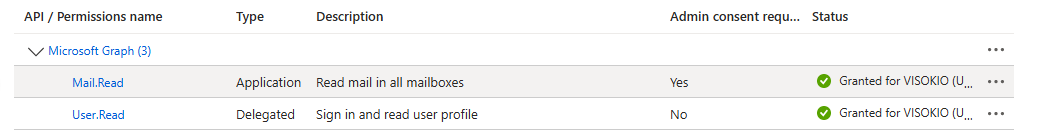

Mail.Read - required for reading emails using the Microsoft 365 connector.
Mail.Send - required if you want Omniscope to send emails using Microsoft 365

Then:

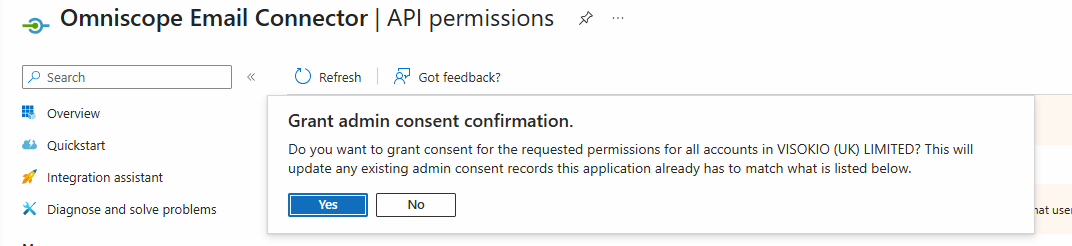

Click Grant admin consent (required)

Without admin consent, Graph calls will fail with 403.

4) (Recommended) Restrict mailbox access

Microsoft Graph application permissions such as `Mail.Read` and `Mail.Send` can be broad by default. To enforce least privilege, restrict which mailboxes the application can access in Exchange Online.

Microsoft currently recommends using **Application RBAC for Exchange** for this: https://learn.microsoft.com/exchange/permissions-exo/application-rbac

Application Access Policies are the older mechanism and may still be available in some tenants: https://learn.microsoft.com/exchange/permissions-exo/application-access-policies

The exact configuration depends on your organisation's Microsoft 365 environment and security policies. This configuration is performed in Microsoft 365 / Exchange Online, not in Omniscope.
